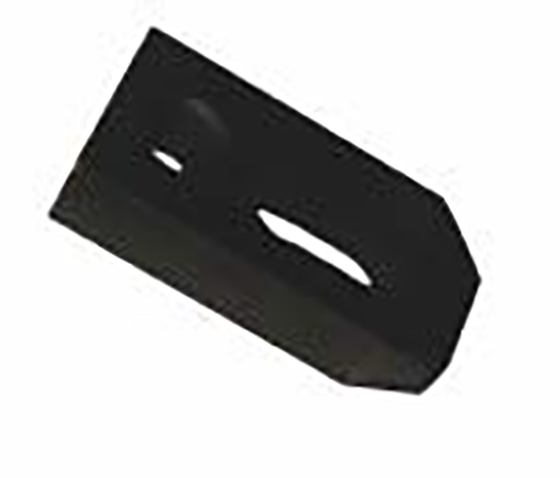

单向压板
点小图放大图 产品名称 : 单向压板
产品型号 : CK-TCM
产品介紹
- Material: medium carbon steel
- Hardness of heat treatment： HRC 32±3。
- Surface treatment: black oxide finished
- For single point clamping application; and supported by engaging stud into tapped thread.

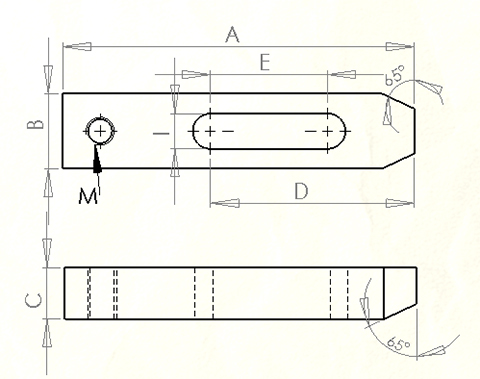

| Order no. | M( thread spec.) | A | B | C | D | E | F | G | Weight(Kg) | Remark |
| TCM-84042 | M12X1.75 | 15 | 100 | 32 | 19 | 34.5 | 31 | 87 | 0.334 | |
| TCM-84043 | M12X1.75 | 15 | 150 | 32 | 22 | 47.5 | 55 | 137 | 0.618 | |
| TCM-85051 | M16X2.1 | 18 | 80 | 38 | 19 | 28 | 15 | 65 | 0.312 | 賣完就停產了 |
| TCM-85052 | M16X2.0 | 18 | 100 | 38 | 19 | 35 | 30 | 87 | 0.398 | |
| TCM-85053 | M16X2.0 | 18 | 150 | 38 | 22 | 46.5 | 57 | 132 | 0.669 | |
| TCM-87071 | M20X2.5 | 21 | 100 | 38 | 19 | 35 | 30 | 87 | 0.465 | |
| TCM-87072 | M20X2.5 | 21 | 150 | 38 | 25 | 50 | 50 | 130 | 0.746 | |
| TCM-87073 | M20X2.5 | 21 | 200 | 44.5 | 28.5 | 65 | 70 | 180 | 1.455 |
