活动式法兰螺帽
点小图放大图 产品名称 : 活动式法兰螺帽
产品型号 : CK-SFN
产品介紹
- 用途: 旋入牙杆与其他组件匹配用来固定挟持工件
锁固螺帽时法兰盘固定不动可避免与其下方的工件磨耗 - 材质；S45C，表面染黑皮膜处理
- 热处理硬度: HRC32±5°
- 产品规格.:
英制 3/8”/1/2”/5/8”/3/4”；
公制 M10/M12 /M14/M16/M20

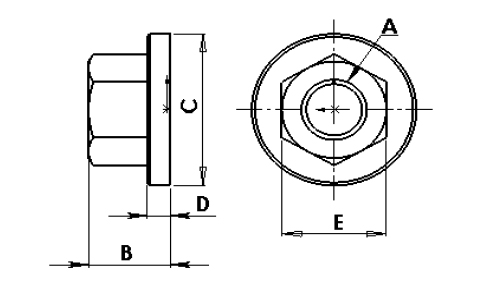

| Order no. | A(Metric size) | B | C | D | E | Feature |
| SFM-13031S | M10X1.5 | 15 | 22 | 4.5 | 17 | Swiveling flange |
| SFM-14041S | M12X1.75 | 21 | 28 | 6.5 | 21 | |
| SFM-14545S | M14X2.0 | 21 | 28 | 6.5 | 21 | |
| SFM-15051S | M16X2.0 | 23 | 35 | 6.5 | 26 | |
| SFM-17071S | M20X2.5 | 28 | 40 | 7 | 32 |
| Order no. | A(Inch size) | B | C | D | E | Feature |
| SF-13031S | 3/8"-16 | 15 | 22 | 4.5 | 17 | Swiveling flange |
| SF-14041S | 1/2"-12 | 21 | 28 | 6.5 | 21 | |
| SF-15051S | 5/8"-11 | 23 | 35 | 6.5 | 26 | |
| SF-17071S | 3/4"-10 | 28 | 40 | 7 | 32 |
